Grillo G85d To-hjulstraktor, R300D AE m. el-start

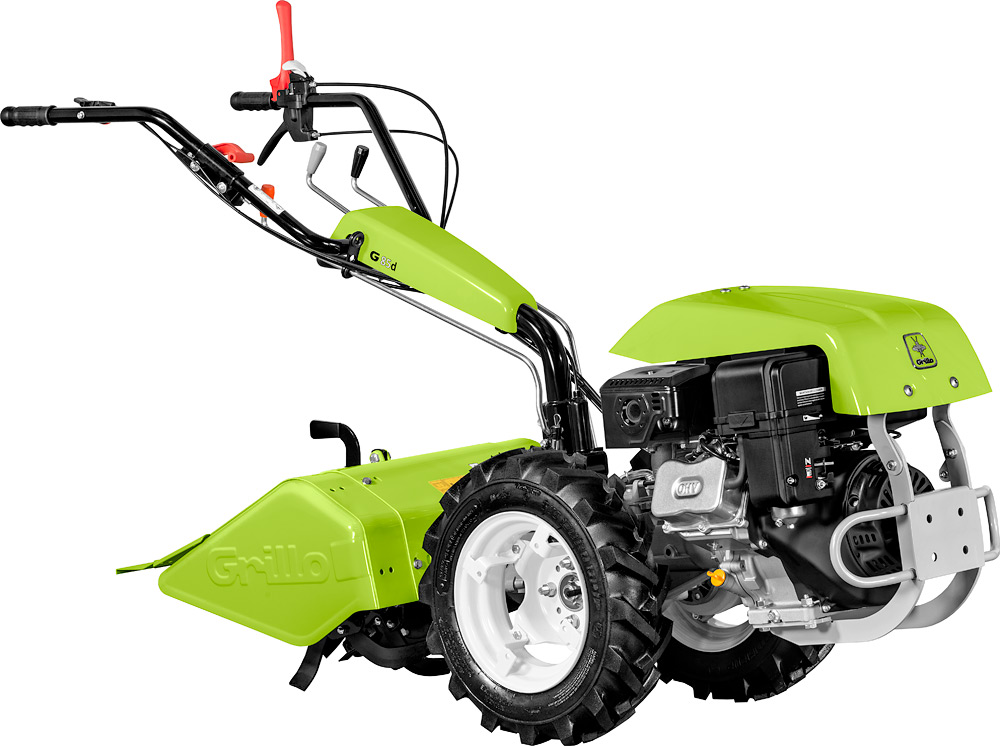

Grillo G85d

The Grillo G85d is an appropriate walking tractor for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.

It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walking tractor can be safely used. Thanks to the possibility to reverse the handlebar through 180°, a lot of front and rear-mounted attachments can be connected to the machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower etc. via either a flanged coupling or through a quick coupling for which no tools are needed.

A plough kit is available too and includes larger wheels, adjustable extensions, a 180° turn-wrest plough and wheel weights.

To achieve a greater stability on slopes, it is possible to widen the wheel track up to maximum 25 cm by using fixed or adjustable wheel extensions.

Motor: Rato R300D

Start: Recoil starter and electric with 12V battery

Supply: Fuel

Displacement: 301 cc, 1 Cylinder

Power: 8.2 HP (6 kW)

Air cooled

Dry air filter

____________________________________________

Transmission: With oil bath gears

Gearbox: With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears

Reverse gear unit: By lever

Clutch: Conic active

Standard rotary tiller: Adjustable rotary tiller with x 4 tines. Working width 580 mm

Hoes system diametre: 32 cm

Working width: Adjustable at 370 and 470 mm (680 mm with extension kit cod. 929112)

Working depth: 16 cm

Item no. standard rotary tiller: 984511

P.T.O.: 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.

Differential locking: Differential with locking device by lever on the handlebar

Available tyres: Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20x10.00-8 (extensions cod. 937112 needed)

Speed: With 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h

Service brake: Brake drum (kit upon request cod. 978111)

Handlebar: Height and side adjustment. Fitted on anti-vibration blocks

Safety devices: Active clutch, reverse speed – PTO cut-out

Weight: Weight: standard version 127 kg
